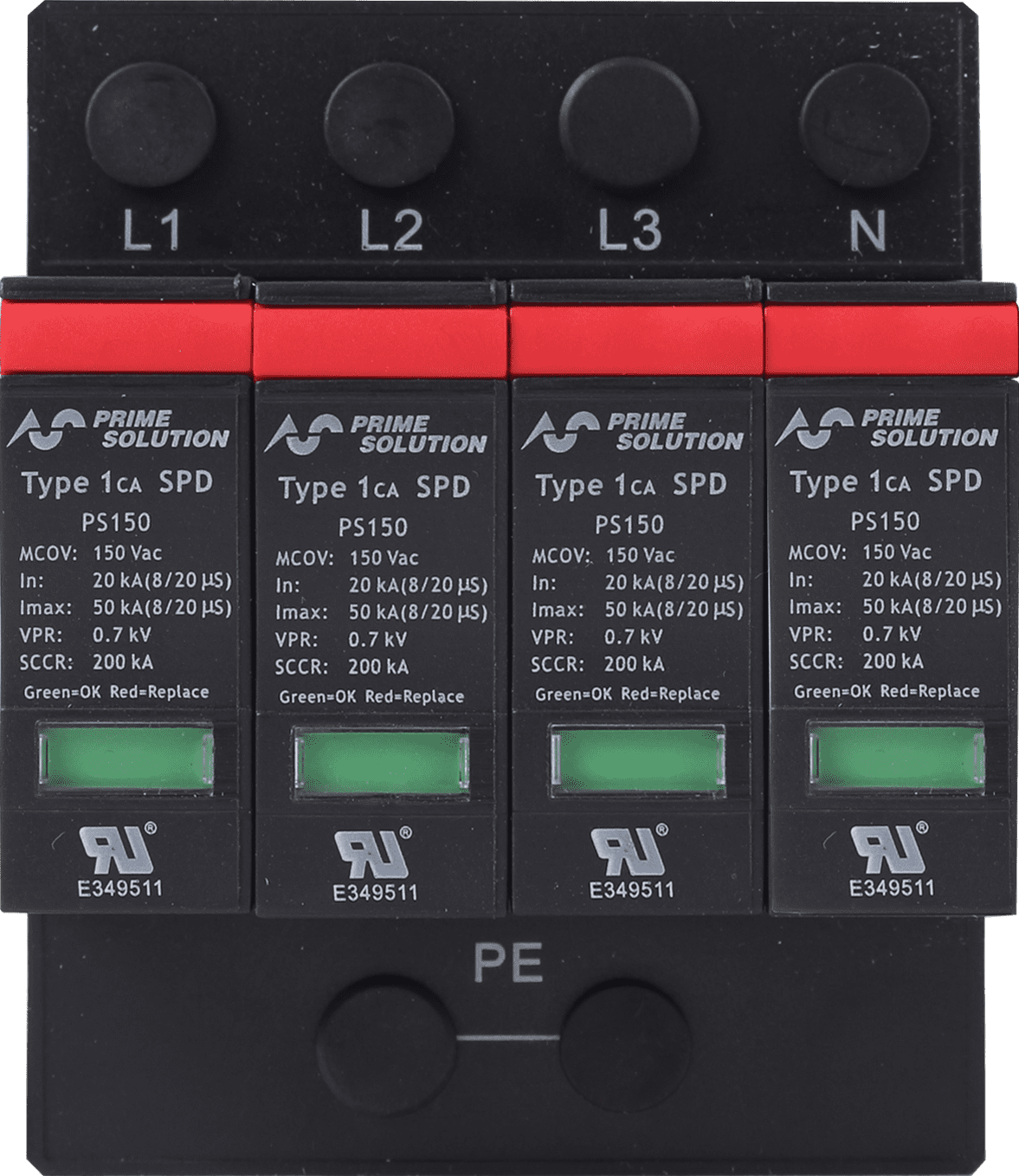

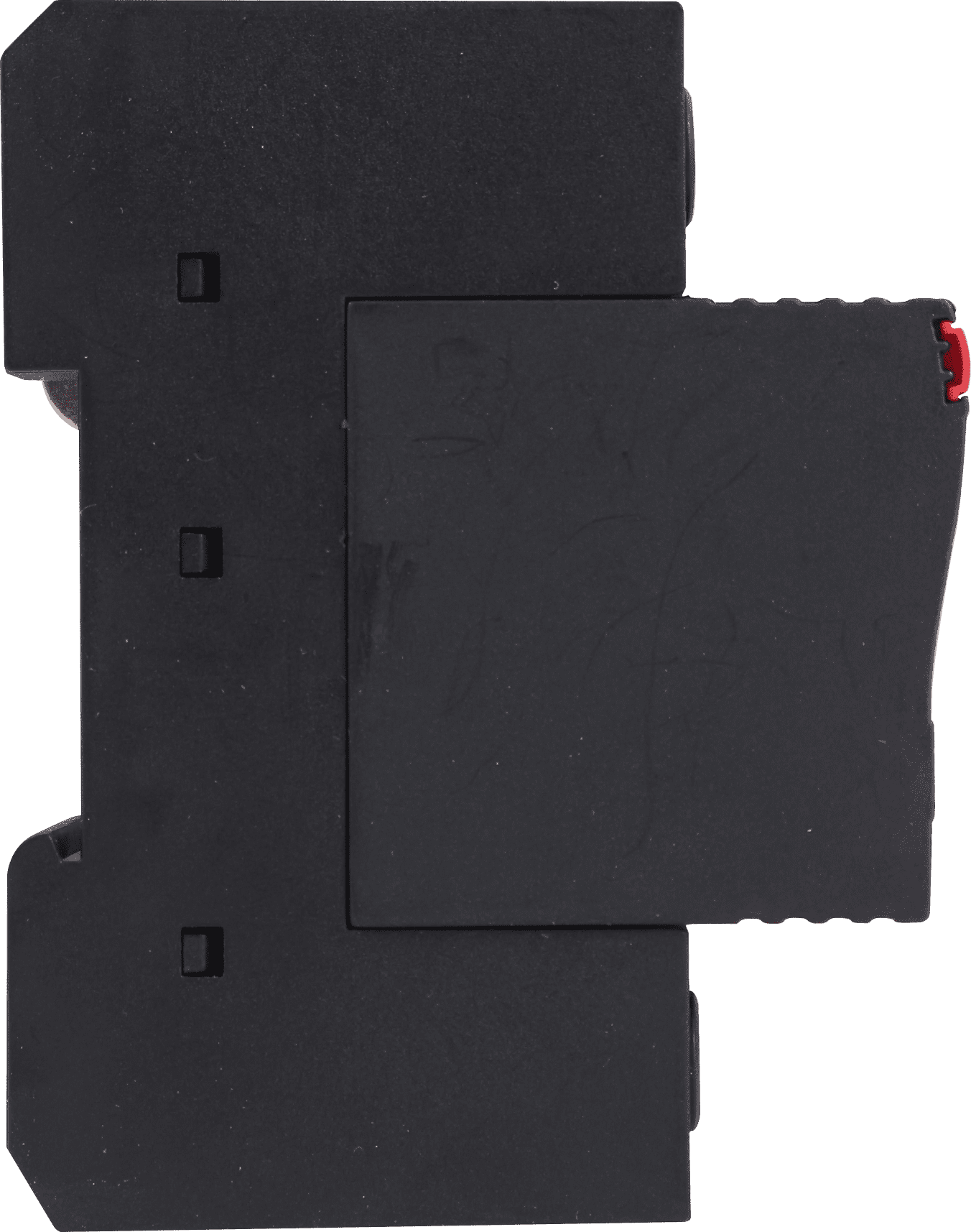

Prime Power Solutions PS150/4P-S DIN Rail Surge Protective Device 150VAC 200kA
$74.09
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.eeducation.com.co
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$74.09
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.eeducation.com.co
Free 30-day returns Details
Product details
| Management number | 238166269 | Release Date | 2026/07/11 | List Price | $29.64 | Model Number | 238166269 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
UL recognized Type 1ca surge protective device is especially designed for low-voltage power supply system surge protection, especially for point of entry (Category C,D, ANSI/IEEE C62.41) and sub-circuit (Category B, ANSI/IEEE C62.41) protection.
Technical Features:
- UL recognized Type 1ca SPD, passed short circuit current rating (SCCR) 200kA without external fuse or CB.
- High reliability due to global patented thermally protected MOV with special arc-extinguish device (TPAE technology).
- Large surge energy capability up to 50KA per mode.
- DIN-rail mounting configuration.
- Pluggable module for easy replacement.
- Degradation failure indication.
- Meet both standards of UL 1449-4th and IEC61643-11:2012.
Specification:
- Category UL: Type 1ca
- Max. continuous operating voltage MCOV (VAC/VDC): 150/200
- Nominal discharge current (8/20us) In: 20kA
- Max. discharge current (8/20us) Imax: 50kA
- Voltage protecting rating: <07kV
- Response time: ≤25ns
- Follow current: No
- Backup fuse (only required if not already provided in mains): 125A gL/gG
- Operating temperature range: - 40°C ~ + 85°C
- Cross-section of connection wire: Single-strand 35mm2(or # 2AWG); multi-strand 25mm2(or # 4AWG)
- Mounting: 35mm DIN-rail in accordance with EN 50022/DIN46277-3
- Enclosure material: thermoplastic; extinguishing degree UL94 V-0
- Degree of protection: IP20
- Installation width: 4 modules, DIN 43880
- Thermal disconnector: Internal green – normal ; red - failure
- Remote alarm contact: Optional
- SCCR: 200kA
- Remote alarm contact type: Isolated Form C
- Switching capability Un/In: AC: 250V/0.5A DC: 250V/0.1A; 125V/0.2A; 75V/0.5A
- Max. Size of connecting wire: Max. 1.5mm2(or # 16AWG)
- Dimension (approx.): 2.9” x 2.8” x 3.6”
| Brand | Prime Power Solutions |
|---|---|
| Has written warranty | No |
| Volts | 150 VAC |
| Dimensions | 2.90 x 2.80 x 3.60 " |
| Weight | 0.88 lb |
